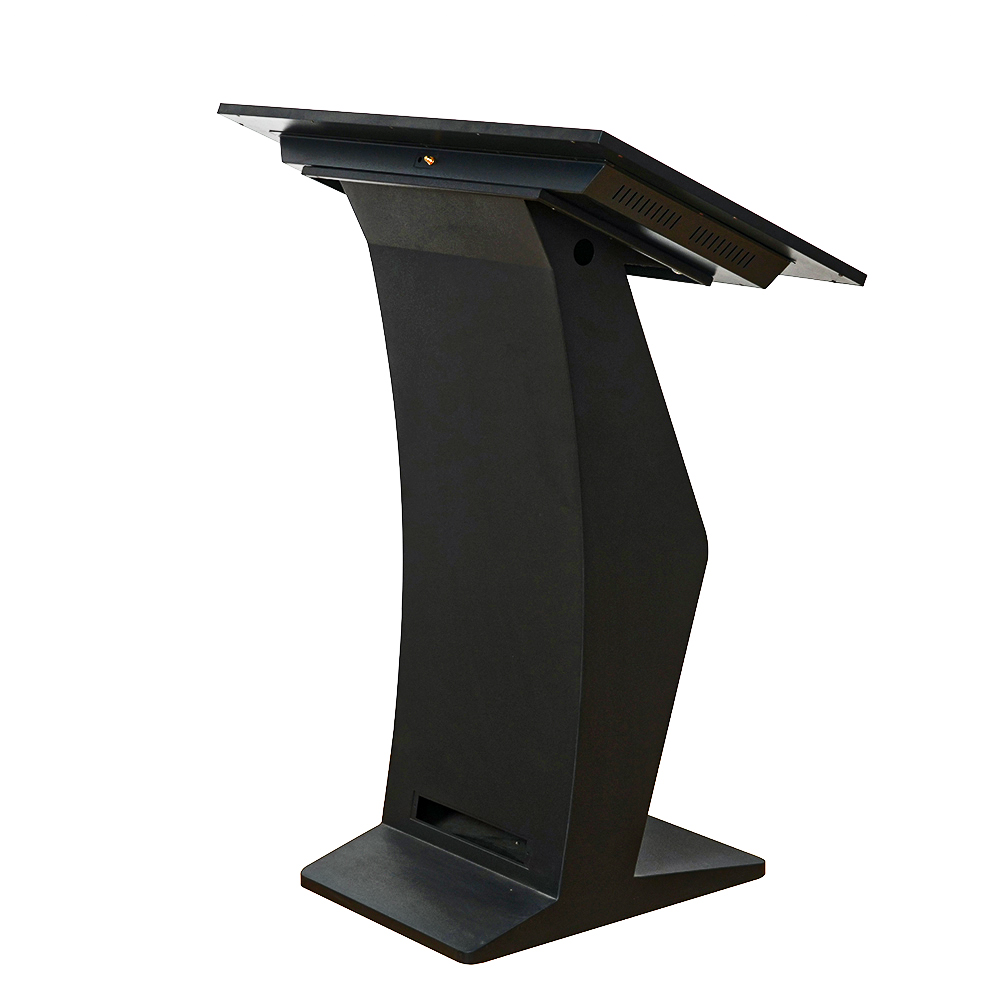

K-Base interactive kiosk

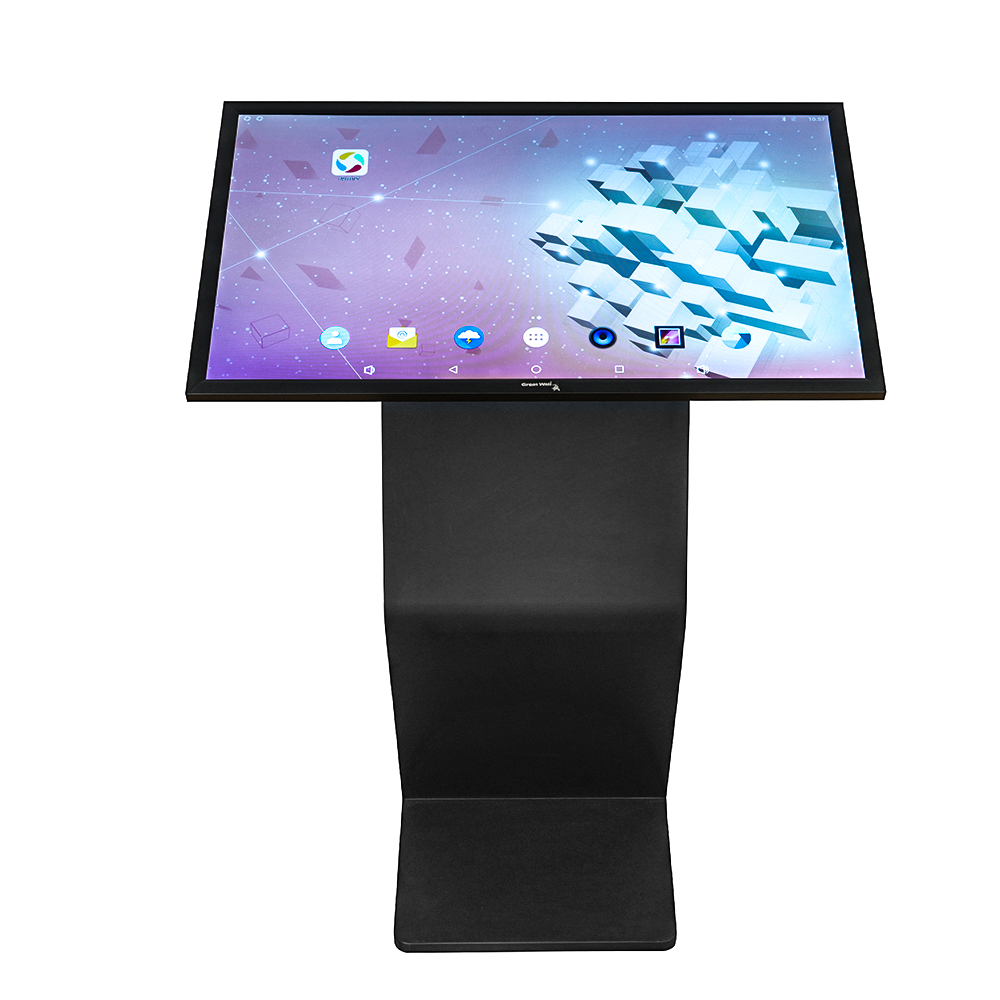

K-Base interactive kiosk – Image 2

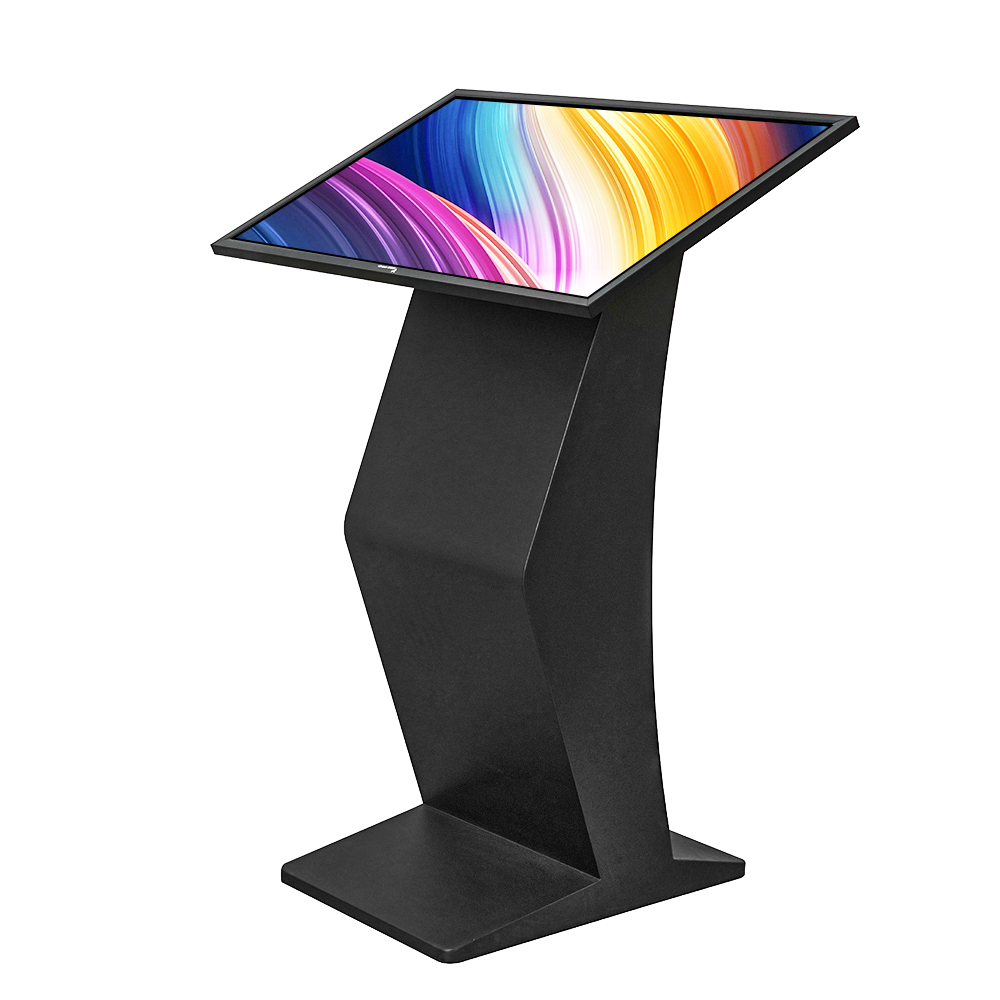

K-Base interactive kiosk – Image 3

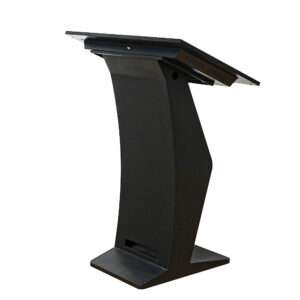

K-Base interactive kiosk – Image 4

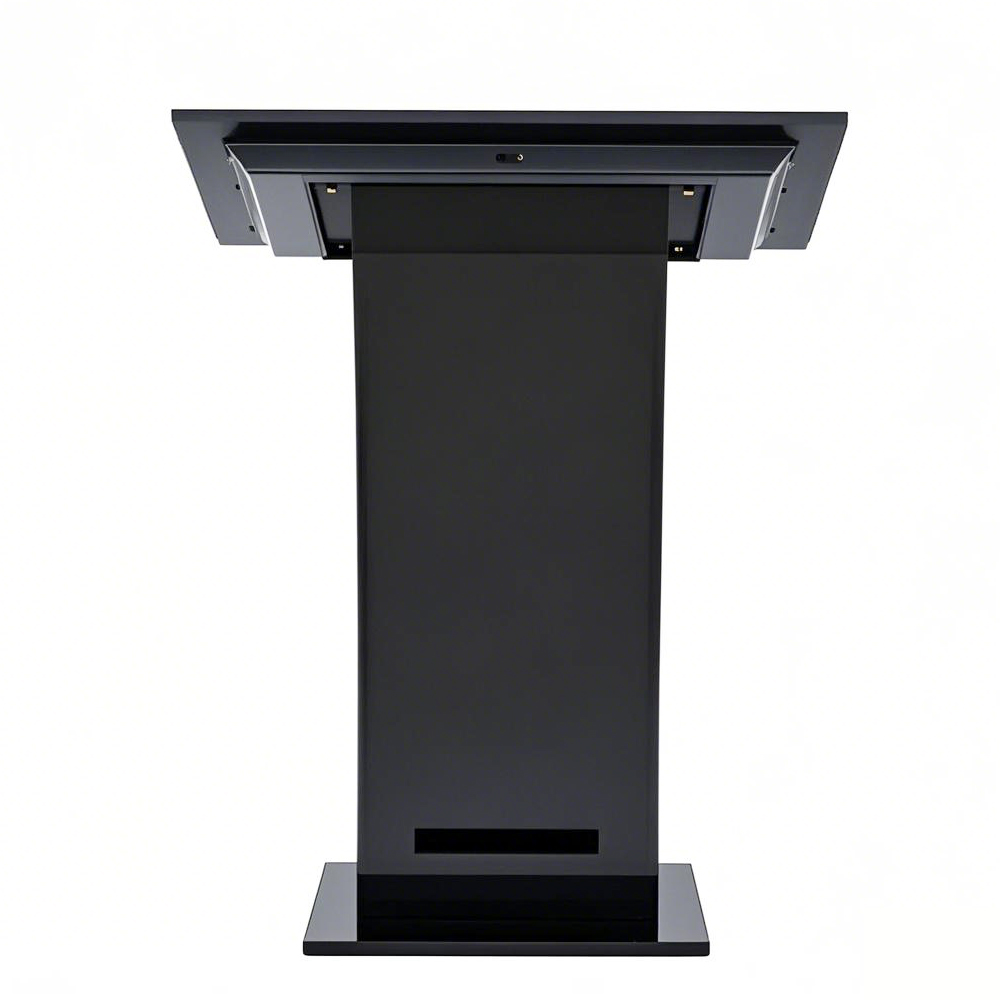

K-Base interactive kiosk – Image 5

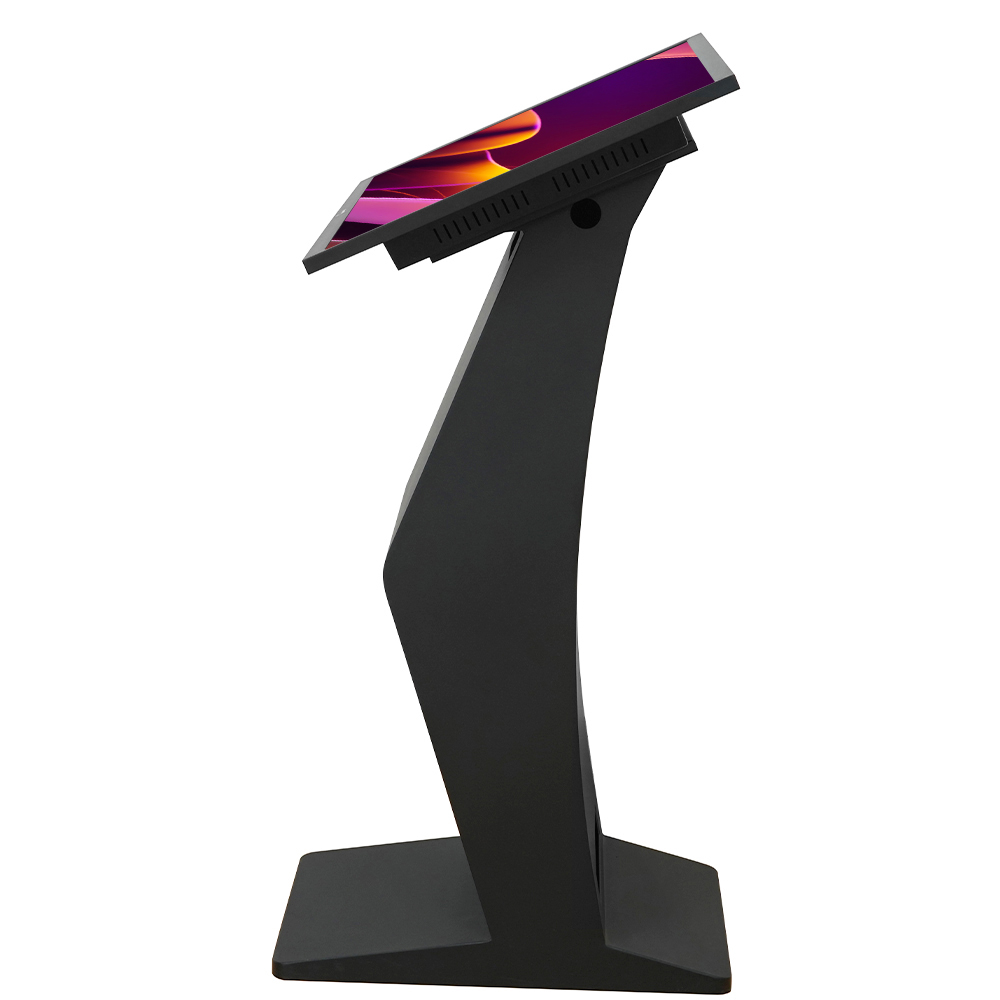

K-Base interactive kiosk – Image 6

K-Base interactive kiosk

    Catégorie :
      Model KK-27 KK-32 KK-43 KK-50 KK-55 KK-65
      Panel Display Size 27″ 32″ 43″ 50″ 55″ 65″
      Display Scale 9: 16
      Display Dimension 597mm(H)*
      336mm(V)      		 698mm(H)*
      393mm(V)      		 941mm(H)*
      529mm(V)      		 1095.8mm(H)*
      616.4mm(V)      		 1209.6mm(H)*
      680.4mm(V)      		 1428.48m(H)*
      803.52mm(V)
      Touch Capacitive Touch supports up to 10 points
      Respond Time 8 ms
      Contract 3000: 1
      Visual Angle 89°/89°/89°/89°
      Display Color 16.7M (8-bit)
      Resolution 1920*1080/ 3840*2160 (optional)
      Brightness 250~600 cd/m2  (Customizable)
      Back Light E-LED
      speaker 8Ω 5W *2
      Lifespan ≥ 80000 h
      System Operation system Android 7/ 11/ 14 (optional)
      CPU RK3288/ RK3568/ T982 (optional)
      Language Multi-languages English, Chinese, French, German, Spanish,etc
      International Certification Qualification Certificate CE, CCC, FCC, ROHS, ISO 9001, FCC SDOC, Software Copyright, etc.
      Power input AC 110-250V ~ 50/60Hz
      Max Power Consumption ≦30W ≦35W ≦45W ≦65W ≦85W ≦140W
      Package Body Size(mm)-Screen 644.4*382.6*64.2mm 739.6*433.8*64mm 981.6*569.6*64mm 1133.8*654.4*69.2mm 1247.6*718.4*68.4mm 1466.4*841.5*68.4mm
      Carton box(mm)-Screen 725*640*120mm 800*500*130mm 1060*675*

      140mm

      		 1240*790*

      150mm

      		 1350*865*

      165mm

      		 1565*990*

      165mm
      Net weight / Gross weight (kg)-Screen 7.5KG/8.5KG 10KG/12KG 17KG/21KG 24KG/28KG 35KG/40KG 41KG/52KG
      Body Size(mm)-K-type base 949*400*330mm 886*480*360mm 954*480*430
      Carton box(mm)-K-type base 430*360*980mm 500*475*995mm 500*475*1010mm
      Net weight / Gross weight (kg）-K-type base 6.3KG/7.5KG 8KG/12KG 10KG/14KG
      Working
      Temperature      		 Working Time 7*24 h
      Working Temperature -0℃~+55℃
      Working Humidity 10% RH~90% RH
      Storage Humidity 10%RH~90%RH
      Installation Method Floor Standing
      Installation Direction Vertical
      Others Color Black/ Silver
      Surface Tempered Glass 3.5mm
      Accessories Power cord *1, Door lock key *2, Remote *1, WiFi antenna *1, Warranty card *1, Qualified Certificate *1
